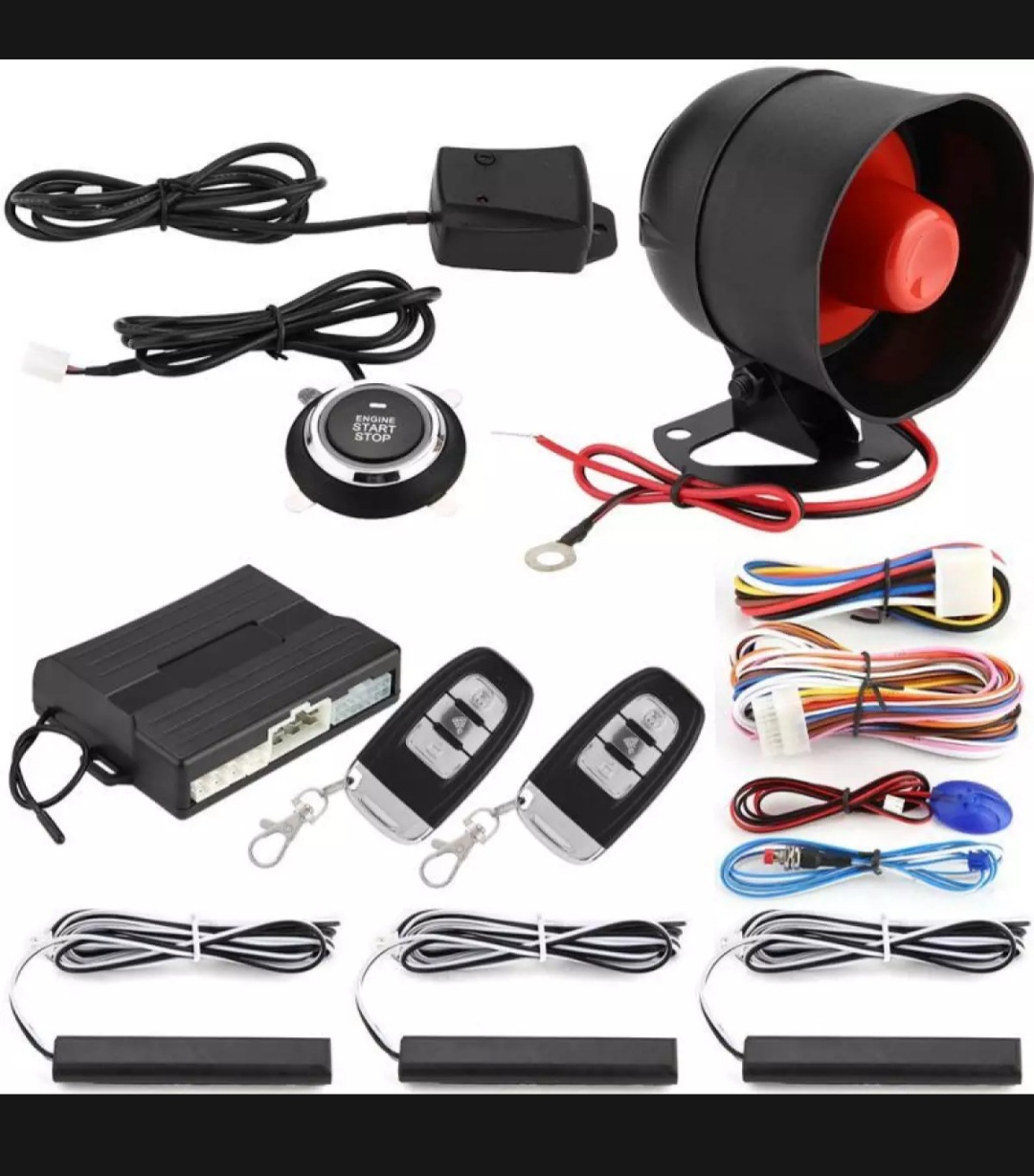

PKE keyless entry for automatic induction unlock

Description

• PKE keyless entry for automatic induction unlock.
• With a key to start and a key flameout function, convenient use.
• With the function of secret lock, the engine will be automatically locked after stopping and shutting down for 15 seconds.
• Turn on/off with one key. Remote start.
• Anti-theft alarm function. Central lock automation.
Features:
1. Turn on/off with one key. Remote start.
2. PKE keyless entry for automatic induction unlock.
3. Oil pump testing function.
4. Identity security. Automatic locking when driving.
5. Anti- alarm function. Central lock automation.
6. Remote boot box (the ori al car must have a boot motor).
7. Double flashing light for door opening.
8. Vibration alarm function.
9. Enter the alarm light flashing prompt.
10. With the function of secret lock, the en e will be automatically locked after stopping and shutting down for 15 seconds.
11. With a key to start and a key flameout function, convenient use.

Specification:
Condition: 100% Brand New
Working voltage: DC voltage DC=12V, 24V power supply is not supported temporarily.
Standby current: 8mA (note: standby for up to 2 months continuously)
The function of starting indicator light at night: at night when the car search start button location is inconvenient, at this time you can step on the brake, the start button on the indicator light will be on for 2 seconds, to facilitate the owner to find the start button location, very practical.
Package Size: 23 * 15 * 10cm / 9.1 * 5.9 * 3.9in

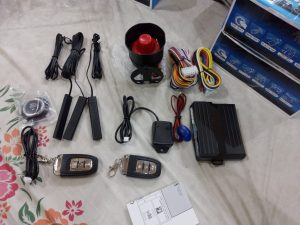

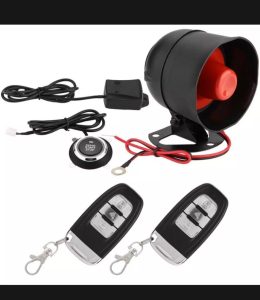

Package List:
1 * Main Controller
1 * Horn
1 * Start Line
1 * Induction Antenna
1 * Detection Line
1 * LED Warning Light
1 * Start Button
1 * Vibration Sensor
1 * Reset Line
2* Remote key

Installation Note:
1. When the vehicle has a steering wheel lock, the key is inserted into the keyhole and punched in the ACC gear to unlock the steering wheel, and the ignition plug of the ori al car is removed to prevent the ori al car’s audio power consumption.
2. When the ori al vehicle has an anti- chip, take out the anti- chip of the ori al vehicle and stick it to the area where the ori al vehicle can be scanned, otherwise it may lead to the start-up failure.
3, Because the base of the start button is metal material, when pasting and putting, if interference with the ori al car’s anti- chip, then choose other areas to put or pad high processing.
4. The output of this product is made of 5 lines, i. e., 12V red wire connection ori al fire line, ACC line of orange wire connection ori al car (usually in 1 gear), ON1 power line of white wire connection ori al car (usually in 2 gear), starting point fire line of yellow wire connection ori al car (this line is powered at the start moment, no power after start-up), brown wire connection of the ori al car ON2 power supply line (this line when the key hit ON gear when there is electricity, and in the start of the moment no electricity, when start-up, there is electricity, installation should be careful to judge).
5. When there are only 4 output wiring for some models, only orange (ACC), white (ON), yellow (ignition starting line, red line (fire line at the key head of the ori al car), brown line is not used or used with white ON1 line.
6. When you meet a number of vehicles with 6 output wiring, in addition to following the way of the fourth item above, but also find out the function of the sixth line, the way is to play the key in ACC file, ON file, start file, In these three different states to detect the power supply of the sixth line, so that the sixth line in the start-up need power supply, and yellow start-up line phase connected or used relay isolation, in the case of power supply at ON, and connect the white line or use relay isolation power supply, keep in mind, otherwise it will be difficult to start the situation.
7. In contrast to the starting part of the whole machine (with a key start and no key access function), it is important to remember that the ground wire must be connected firmly and the ground wire cannot be connected long, otherwise it will be difficult to start or the starting indicator light will be extinguished with one foot brake. All because the ground line is loose or the connection iron bad result.
